.NET Assembly Full Address search

Getting Full address finder using the .Net Assembly

Full Address Search functionality:

Enter postcode to search for
Presents a list of addresses at postcode entered
Address is selected by user
Full address for selection is returned

When using the .Net Assembly, to search by Postcode to get Full address, we have two choices of implementation:

Using the .Net Assembly UI, for fast and easy implementation (including advanced word search)
Use .Net Assembly to retrieve address data, but implement your own user interface

Note: the .Net Assembly is for desktop applications compiled to 32 bits. It will run fine on 64 bit machines, but will not support an application compiled to 64 bits, as it uses Microsoft MDAC which does not support 64 bits.

Getting Full address using the .Net Assembly User Interface

Step 1 Sign up for trial

Simply use the "Sign Up for Trial" link at top right of this page to open a trial account. We will then send you a data key, which is used to identify your account, when using the following service.

Step 2 Download .Net Assembly

The .NET Assembly is for use with any Desktop .NET project. It is written in Framework V2.0 so compatible with any framework from 2 upwards. It is almost identical to our COM object, but is implemented as a .NET Assembly. It is therefore easier to distribute within your .NET project, since it requires no extra files.

The .NET Assembly is in the “NET Assembly” directory of our api example code.

Note: the .Net Assembly is for 32bit desktop applications

How to distribute .NET Assembly

Simply include the “ISimplyPostCodeClass.dll” in your application directory.

Step 3 Creating the .NET Assembly

Copy the “ISimplyPostCodeClass.dll” in your application directory, and then add it to your project references. This can be found in the “NET Assembly” directory of our example code.

In C# or VB, simply right click on the project in the Solution Explorer. Select “Add Reference”. On the window that opens, click on the Browser tab. Now find and double click on “ISimplyPostCodeClass.dll” to add reference.

The class constructor takes a parameter of a working directory PATH. This directory is used to store the advanced search data used in combos if used. This must be a valid directory, and have WRITE permissions.

                      VB.NET

                        Public Class Form1

                           Public SimplyPostCodeLookup As
                          ISimplyPostCodeClass.ISimplyPostCodeClass



                        Private Sub Form1_Disposed(ByVal sender As Object,
                        ByVal e As System.EventArgs) Handles Me.Disposed

                           SimplyPostCodeLookup = Nothing

                        End Sub



                        Private Sub Form1_Load(ByVal sender As System.Object,
                        ByVal e As System.EventArgs) Handles MyBase.Load



                           SimplyPostCodeLookup = New
                          ISimplyPostCodeClass.ISimplyPostCodeClass(CurDir)

                      C# .NET

                        public partial class Form1 :
                        Form



                           private ISimplyPostCodeClass.ISimplyPostCodeClass
                          SimplyPostCodeLookup;



                        private void Form1_Load(object sender, EventArgs e)



                          string workingDirectoryForWorkingFiles = Directory.GetCurrentDirectory();

                           SimplyPostCodeLookup = new
                          ISimplyPostCodeClass.ISimplyPostCodeClass(workingDirectoryForWorkingFiles);



                        }

Step 4 Specify the Data Key

The Data Key will have been sent to you via an e-mail when you opened the account. It is also available under the “Data Key” tab of the online admin window. For the .NET Assembly you should use the data key beginning with "I_".

                      VB.NET

                        SimplyPostCodeLookup.SetDataKey(Me.txtDataKey.Text)

                      C# .NET

                        string DataKey="Your Data
                          Key";

                          SimplyPostCodeLookup.SetDataKey(ref DataKey);

Optional, set Proxy sever details

A function allows the program to define the proxy settings touse when requesting data from our internet server.

Simply call SetProxy(ProxyAddress, usedID, Password, Domain)

Parameters

Parameter name	Description
ProxyAddress As String	For example "https://proxy:80/"
usedID As String	Username to log in to proxy
Password As String	Password to log in to proxy
Domain As String	Domain of proxy

                    VB.NET

                      'Set Proxy Server

                      SimplyPostCodeLookup. SetProxy(”https://proxy:80/”,”Admin”,”Password”,”My Domain”)

                    C# .NET

                      'Set Proxy Server

                      SimplyPostCodeLookup. SetProxy(”https://proxy:80/”,”Admin”,”Password”,”My Domain”);

Step 5 Call SearchForFullAddressWithDialogue to Present List of addresses at Postcode

Simply call SearchForFullAddressWithDialogue(PostcodePrima, Caption, ShowLicienceDetails, AllowManageAccount, DisplayErrors)

This call can be used with Local Data or Internet based data.

This function call will display a dialogue box for the user to enter the postcode to search for, or address words if using Advanced Search (Web Based data only). The user then presses the FIND button, and a list of possible addresses is displayed for the entered postcode. The user selects an appropriate address record and the address is returned.

Postcode Lookup Example

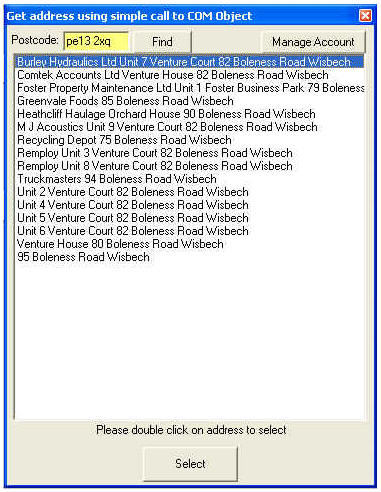

This code displays the following Postcode Address Lookup window:

                      VB.NET

                        'Set Data key, to identify your
                        account

                        SimplyPostCodeLookup.SetDataKey("Your Data
                          Key")



                        With SimplyPostCodeLookup

                           If .SearchForFullAddressWithDialogue(Me.txtPostcode.Text, "Get
                          address using simple call to


                          .NET Assembly Object", True, True, True) Then



                              Me.CompanyName.text = .Address_Organisation

                              Me.Line1.text = .Address_Line1

                              Me.Line2.text = .Address_Line2

                              Me.Line3.text = .Address_Line3

                              Me.Town.text = .Address_Town

                              Me.County.text = .Address_County

                              Me.Postcode.text = .Address_Postcode



                           End If

                        End With

                      C# .NET

                        //Set Data key, to identify your
                        account

                        string DataKey;

                        DataKey = GetDataKey();

                        SimplyPostCodeLookup.SetDataKey(ref DataKey);



                        //This calls the COM object to do all of the work!

                        string PostCodeToFind = txtPostcode.Text;

                        string Title = "Get address using simple call to
                        .NET Assembly Object";



                        if (SimplyPostCodeLookup.SearchForFullAddressWithDialogue(PostCodeToFind,
                          Title, true, true, true) == true)

                        {

                           CompanyName.text = SimplyPostCodeLookup.Address_Organisation;

                           Line1.text = SimplyPostCodeLookup.Address_Line1;

                           Line2.text = SimplyPostCodeLookup.Address_Line2;

                           Line3.text = SimplyPostCodeLookup.Address_Line3;

                           Town.text = SimplyPostCodeLookup.Address_Town;

                           County.text = SimplyPostCodeLookup.Address_County;

                           Postcode.text = SimplyPostCodeLookup.Address_Postcode;

                        }

Advanced Search Example

This function adds an Advanced Find button to the search window provided by SearchForFullAddressWithDialogue call (See previous section). This allows users to enter address words to search for, to return Full address information:

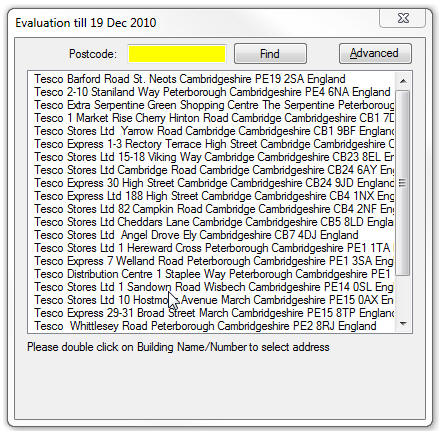

When the Advanced Find button is pressed the following is displayed:

Results

This call can ONLY be used with Internet based data

Step 6 Testing

Final step is to test, to enable easy testing please use our special test postcodes.

Postcode Software Full Address - Example Code

Simply download the example code. The code is in the "NET assembly/Csharp NET Assembly Example" or "NET assembly/VB NET Assembly Example" directory of our example downloads.

These two examples demonstrate postcode lookup software using Full Address.

Full Address using the .NET Assembly and implement your own User Interface:

This is a two-step process. First we present a list to the user, then wait for user selection. After selection we retrieve the full address from the database.

Follow steps 1-4 above.

Step 5 Sign up for trial

Simply use the "Sign Up for Trial" link at top right of this page to open a trial account. We will then send you a data key, which is used to identify your account, when using the following service.

Step 6 Present a list for addreses from postcode entered

Simply call GetFullAddressToList(Postcode), with the Postcode the user has entered in search box.

This call can be used with Local Data or Internet based data.

Parameters

Parameter name	Description
Postcode as string	Postcode to find. If using our Internet based data, then the user can enter words, and wildcard, to search for address data.

Returns

Returns true if address search completed and General_credits_display_text contains summary of Credits/License status. Else errors reported in General_errormessage.

Step 7 Call for each line to display

And then call GetFullAddressLineForSelection() to get each line for list selection for display, discussed in next section.

Example Full Address search code

                    VB.NET

                      'Set Data key, to identify your account

                      SimplyPostCodeLookup.SetDataKey(Me.txtDataKey.Text)
                       Me.ListBox1.Items.Clear()
                       With SimplyPostCodeLookup
                         If .GetFullAddressToList(Me.txtPostcode.Text) Then



                           'Make list + Cancel button visible

                           Me.ListBox1.Visible = True

                           Me.ButCancelSelection.Visible = True
                          'Now Populate the List box

                           Dim Line$

                           Line = .GetFullAddressLineForSelection()

                           Do Until Line = ""

                             Me.ListBox1.Items.Add(Line)

                             Line = .GetFullAddressLineForSelection()

                         Loop
                         Else

                            MsgBox(.General_credits_display_text & vbCrLf & .General_errormessage,

                                                 vbCritical, "Simply Postcode Lookup")

                        End If
                         Me.Text = "Simply Postcode Lookup : " & .General_credits_display_text
                      end With

                    C# .NET

                      string DataKey;

                      DataKey = "Your Data Key"

                      SimplyPostCodeLookup.SetDataKey(ref DataKey);
                       ListBox1.Items.Clear();
                       string PostCodeToFind = txtPostcode.Text;

                        if (SimplyPostCodeLookup.GetFullAddressToList(ref PostCodeToFind) == true)

                        {

                          //Make list + Cancel button visible

                          ListBox1.Visible = true;

                          ButCancelSelection.Visible = true;
                          //Now Populate the List box

                            string Line="";

                          Line = SimplyPostCodeLookup.GetFullAddressLineForSelection();

                          while (Line != "")

                          {

                              ListBox1.Items.Add(Line);

                              Line = SimplyPostCodeLookup.GetFullAddressLineForSelection();

                          }
                        } else {

                           MessageBox.Show(SimplyPostCodeLookup.General_credits_display_text + " " +

                          SimplyPostCodeLookup.General_errormessage, "Simply Postcode Lookup");

                        }
                       this.Text = "Simply Postcode Lookup : " +

                        SimplyPostCodeLookup.General_credits_display_text;

Step 8 Get Address Reord Selected

Now get Address record, when user double clicks on address line in selection box

Calling GetFullAddressRecord(SelectedListIndex as long)

Parameters

Parameter name	Description
SelectedListIndex as long	The index number of the item selected in the listbox. Zero being the first item on the list

Returns

Returns true if address search completed and General_credits_display_text contains summary of Credits/License status. Else errors reported in General_errormessage.

Example get address record

                    VB.NET

                      With SimplyPostCodeLookup

                         If .GetFullAddressRecord(Me.ListBox1.SelectedIndex) Then
                                                Me.CompanyName.text = .Address_Organisation

                            Me.Line1.text = .Address_Line1

                            Me.Line2.text = .Address_Line2

                            Me.Line3.text = .Address_Line3

                            Me.Town.text = .Address_Town

                            Me.County.text = .Address_County

                            Me.Postcode.text = .Address_Postcode
                                              Else

                                                  MsgBox(.General_credits_display_text & vbCrLf & .General_errormessage,

                                        vbCritical, "Simply Postcode Lookup")

                         End If
                                               Me.Text = "Simply Postcode Lookup : " & .General_credits_display_text

                                        End With

                    C# .NET

                      int  SelectedIndex=ListBox1.SelectedIndex;

                      if (SimplyPostCodeLookup.GetFullAddressRecord(ref  SelectedIndex)==true)

                      {

                        CompanyName.text = SimplyPostCodeLookup.Address_Organisation;

                         Line1.text = SimplyPostCodeLookup.Address_Line1;

                         Line2.text = SimplyPostCodeLookup.Address_Line2;

                         Line3.text = SimplyPostCodeLookup.Address_Line3;

                         Town.text = SimplyPostCodeLookup.Address_Town;

                         County.text = SimplyPostCodeLookup.Address_County;

                         Postcode.text = SimplyPostCodeLookup.Address_Postcode;
                      } else {

                           MessageBox.Show(SimplyPostCodeLookup.General_credits_display_text +  " " +

                                    SimplyPostCodeLookup.General_errormessage,  "Simply Postcode Lookup");

                      }




                      this.Text = "Simply Postcode Lookup : " +

                                                   SimplyPostCodeLookup.General_credits_display_text;

Step 9 Testing

Final step is to test, to enable easy testing please use our special test postcodes.

Postcode Software - Example Code

Simply download the example code. The code is in the "NET assembly/Csharp NET Assembly Example" or "NET assembly/VB NET Assembly Example" directory of our example downloads.

These two examples demonstrate postcode lookup software using Full Address.

Alternative using Address ID:

In the previous two steps we used the NET assembly to remember, in the background, the actual address record IDs used to get the resultant address record. This makes implementing for traditional desktop software easier.

When implementing for a web site we need to store the actual address ID’s in the combo box we allow the user to select from since we cannot keep the state of the NET Assembly alive between calls from the users web page. Indeed the SimplyPostCodeLookup object life is only the duration of the address query.

Follow steps 1-4 above.

Step 5 Present a list fo addreses from postcode entered

To obtain the Address ID and the line information, we use:

.GetFullAddressLineForSelectionWithID(ID as string)

Instead of .GetFullAddressLineForSelection()

Example code to get list

                    VB.NET

                      Dim SimplyPostCodeLookup = New ISimplyPostCodeClass.ISimplyPostCodeClass(CurDir)
                      'Set Data key, to identify your account

                       SimplyPostCodeLookup.SetDataKey("Your Data key")
                      'If using Local Mode data files then the following code sets the PATH.

                       'SimplyPostCodeLookup.LMSetDataPath(DataPATH)
                      Dim PostCode$ = "PE13 2QL";

                       Me.ListAddresses.Items.Clear()
                      With SimplyPostCodeLookup
                        If .GetFullAddressToList(PostCode$) Then
                          'Now Populate the List box

                          Dim Line$ = "", ID$ = ""

                          Line = .GetFullAddressLineForSelectionWithID(ID)
                          Do Until Line = ""
                            Me.ListAddresses.Items.Add(New ListItem(Line, ID))

                             Line = .GetFullAddressLineForSelectionWithID(ID)

                           Loop

                         Else

                           'Display errror

                           Me.Label2.Text = .General_credits_display_text & vbCrLf & .General_errormessage

                       End If
                        If Me.ListAddresses.Items.Count = 0 Then Me.Label1.Text = "Nothing found..."
                        Me.Label2.Text = "Simply Postcode Lookup : " & .General_credits_display_text

                     End With
                      SimplyPostCodeLookup = Nothing

Step 6 Get Address Record Selected

Then we need to get the Address record, when user double clicks on address line in selection box.

This time we call GetFullAddressRecordByAddressID(addressID as string)

Parameters

Parameter name	Description
addressID as string	The Address ID is returned in this string

Returns

Returns true if address search completed and General_credits_display_text contains summary of Credits/License status. Else errors reported in General_errormessage.

Example code to get address

                    VB.NET

                      Dim addressID$ = "11570840_0E"
                      Dim SimplyPostCodeLookup = New ISimplyPostCodeClass.ISimplyPostCodeClass(CurDir)



                       'Set Data key, to identify your account

                     SimplyPostCodeLookup.SetDataKey("Your datakey")
                      'If using Local Mode data files then the following code sets the PATH

                       'SimplyPostCodeLookup.LMSetDataPath(DataPATH)
                      Dim DataToDisplay$ = ""
                      With SimplyPostCodeLookup

                         If .GetFullAddressRecordByAddressID(addressID$) Then

                             DataToDisplay = "Organistaion:" & .Address_Organisation & "
"

                             DataToDisplay += "Line1:" & .Address_Line1 & "
"

                             DataToDisplay += "Line2:" & .Address_Line2 & "
"

                             DataToDisplay += "Line3:" & .Address_Line3 & "
"

                             DataToDisplay += "Town:" & .Address_Town & "
"

                             DataToDisplay += "County:" & .Address_County & "
"

                             DataToDisplay += "Postcode:" & .Address_Postcode & "
"

                          Else

                             'Display error

                             MsgBox(.General_credits_display_text & vbCrLf & .General_errormessage,

                                            vbCritical, "Simply Postcode Lookup")

                          End If
                         DataToDisplay += "Simply Postcode Lookup : " & .General_credits_display_text

                       End With


                      SimplyPostCodeLookup = Nothing

Step 7 Testing your Address Search Software

Final step is to test, to enable easy testing please use our special test postcodes.

Postcode Software Advanced Search - Example Code

Simply download the example code. The code is in the "NET assembly/Csharp NET Assembly Example" or "NET assembly/VB NET Assembly Example" directory of our example downloads.

These two examples demonstrate postcode lookup software using Full Address.

Data Returned

This type of license returns: (see example below)

Public Address_Id As String ●
Public Address_Organisation As String
Public Address_Line1 As String
Public Address_Line2 As String
Public Address_Line3 As String
Public Address_Town As String
Public Address_County As String
Public Address_Postcode As String
Public Address_Country As String

'Note: When using getting Thoroughfare only:
    'Address_Organisation is Not returned
    'Address_Line1 may return road name, but the user must supply the Building
    'Name/Number in your software, so you will need to prompt them for this data

'Extra Address information contained in PAF data file
Public Address_Deliverypointsuffix As String ●
Public Address_NoHouseHolds As String ●
Public Address_Smallorg As String ●
Public Address_PoBox As String ●
Public Address_Rawpostcode As String ●
Public Address_Mailsort As String ●
Public Address_Unique As String ●   *
Public Address_UDPRN As String ●  *
Public Address_Spare As String   ●    *

* = Not available in Local Mode

● see Additional Data Returned by Postcode Finder API for more information

Simply Postcode™

Getting Full address finder using the .Net Assembly

Getting Full address using the .Net Assembly User Interface

Step 1 Sign up for trial

Step 2 Download .Net Assembly

How to distribute .NET Assembly

Step 3 Creating the .NET Assembly

Step 4 Specify the Data Key

Optional, set Proxy sever details

Parameters

Step 5 Call SearchForFullAddressWithDialogue to Present List of addresses at Postcode

Postcode Lookup Example

Advanced Search Example

Results

Step 6 Testing

Postcode Software Full Address - Example Code

Full Address using the .NET Assembly and implement your own User Interface:

Step 5 Sign up for trial

Step 6 Present a list for addreses from postcode entered

Parameters

Returns

Step 7 Call for each line to display

Example Full Address search code

Step 8 Get Address Reord Selected

Parameters

Returns

Example get address record

Step 9 Testing

Postcode Software - Example Code

Alternative using Address ID:

Step 5 Present a list fo addreses from postcode entered

Example code to get list

Step 6 Get Address Record Selected

Parameters

Returns

Example code to get address

Step 7 Testing your Address Search Software

Postcode Software Advanced Search - Example Code

Data Returned
