Software HTTP/XML Web Service

V2 Legacy HTTP/XML Web Service offers a simple way to interact with our postcode address lookup service. A simple web request URL returns XML which can be read by almost any programming language.   This service provides up to date Royal Mail address information, that is updated daily.

This data source can be used by any web server or programming language that supports a server-side scripting language that can parse JSON data, to provide Postcode Software Lookup and Nearest Store locator within your software/Web site.

The service is available across a simple HTTP protocol. Each request is a standard HTTP GET request with the query string forming the request parameters, and returns the address Lookup information as XML data feed.

V3 Open API: has replaced this V2 Legacy HTTP/XML Web Service - For web/desktop applications, we have an Open API web service that takes a Postcode, Postcode + Part of address, or “Search as you type” words and returns a list of matching addresses, which can be used by almost any programming stack.

The user then selects an address from the list presented, and another call is made to the Open API to get the detailed address record and its geolocation. More info about Open API

V2 HTTP/XML Web Service Offers:

The service is available across a simple HTTP protocol. Each request is a standard HTTP GET request with the query string forming the request parameters, and returns the address Lookup information as XML.

Demonstration Video

V2 HTTP/XML Web Service Features

The HTTP/XML Web Service has the following features:

V2 HTTP/XML Web Service Demo Program

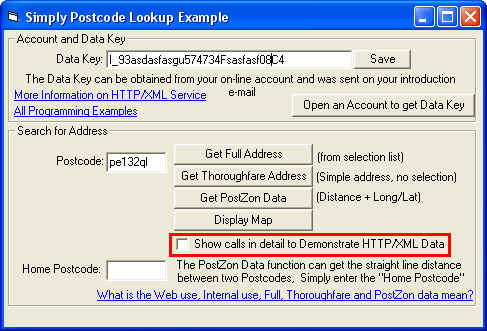

HTTPExample.exe can be found in the root of the example download code. This demonstrates the HTTP requests in action.

Turning on “Show calls in detail to Demonstrate HTTP/XML Data” will show the URLs called and the XML returned by calls HTTP calls. This should help programmers of other languages understand the HTTP calls and returns data.

V2 HTTP/XML Web Service Example Code

The HTTP/XML examples:

HTTPExample.exe can be found in the root of the example download code. This demonstrates the HTTP requests in action.

Turning on “Show calls in detail to Demonstrate HTTP/XML Data” will show the URLs called and the XML returned by calls HTTP calls. This should help programmers of other languages understand the HTTP calls and returns data.

For Web Sites

Directory	Language	API Used	Description
AJAX/AJAX ASP Full Address	ASP	HTTP/XML	AJAX Full Address example
AJAX/AJAX ASP Full Address 2 Addresses	ASP	HTTP/XML	AJAX Full Address example with 2 address box on same page
AJAX/AJAX ASP NET Full Address	ASP.NET	HTTP/XML	AJAX Full Address example
AJAX/AJAX ASP NET Full Address 2 Addresses	ASP.NET	HTTP/XML	AJAX Full Address example with 2 address box on same page
AJAX/AJAX ASP NET Full Address 2 Addresses C#	C#	HTTP/XML	AJAX Full Address example
AJAX/AJAX ASP NET Full Address C#	C#	HTTP/XML	AJAX Full Address example with 2 address box on same page
AJAX/AJAX ASP NET Thoroughfare	ASP.NET	HTTP/XML	AJAX Thoroughfare/Street Address example
AJAX/AJAX ASP NET Thoroughfare 2 Addresses	ASP.NET	HTTP/XML	AJAX Thoroughfare/Street Address example with 2 address box on same page
AJAX/AJAX ASP NET Thoroughfare 2 Addresses C#	C#	HTTP/XML	AJAX Thoroughfare/Street Address example with 2 address box on same page
AJAX/AJAX ASP NET Thoroughfare C#	C#	HTTP/XML	AJAX Thoroughfare/Street Address example
AJAX/AJAX ASP Thoroughfare	ASP	HTTP/XML	AJAX Thoroughfare/Street Address example
AJAX/AJAX ASP Thoroughfare 2 Addresses	ASP	HTTP/XML	AJAX Thoroughfare/Street Address example with 2 address box on same page
AJAX/AJAX PHP Full Address	PHP	HTTP/XML	AJAX Full Address example
AJAX/AJAX PHP Full Address 2 Addresses	PHP	HTTP/XML	AJAX Full Address example with 2 address box on same page
AJAX/AJAX PHP Thoroughfare	PHP	HTTP/XML	AJAX Thoroughfare/Street Address example
AJAX/AJAX PHP Thoroughfare 2 Addresses	PHP	HTTP/XML	AJAX Thoroughfare/Street Address example with 2 address box on same page
ASP	ASP	HTTP/XML	How to get PostZon and Thoroughfare/Street data using HTTP/XML Web Service
PHP core code/Full Address core code	PHP	HTTP/XML	Get Full using HTTP/XML Web Service
PHP core code/PostZon core code	PHP	HTTP/XML	Get PostZon using HTTP/XML Web Service
PHP core code/Thoroughfare core code	PHP	HTTP/XML	Get Thoroughfare/Street using HTTP/XML Web Service
Python	Python	HTTP/XML	Get Thoroughfare/Street using HTTP/XML Web Service
Java	Java	HTTP/XML	Get Thoroughfare/Street using HTTP/XML Web Service
Web Popup/ASP Full Address Web Pop-up	ASP	HTTP/XML	Web Popup for full address using ASP
Web Popup/PHP Full Address Web Pop-up	PHP	HTTP/XML	Web Popup for full address using ASP
Web Popup/VBNET 2005 Full Address Web Popup	VB.NET	HTTP/XML	Web Popup for full address using .NET

For Desktop Software

Directory	Language	API Used	Description
VB6 HTTP Example	VB6	HTTP/XML	Example of how to use HTTP/XML web service to get FULL, Thoroughfare/Street and PostZon Data
HTTPExample.exe	Demo	HTTP/XML	Demonstrates the HTTP/XML calls by showing the url called and the XML results. Should run from this directory on any PC

Download Programming Examples (13Mb)

see below for list of examples
