SimplyPostcode™ - COM Object Full Address search

Full address finder using the COM Object

Full Address Search functionality

Enter postcode to search for
Presents a list of addresses at postcode entered
Address is selected by user
Full address for selection is returned

When using the COM Object, to search by Postcode to get Full address, we have two choices of implementation:

Using the COM user interface, for fast and easy implementation (including advanced word search)
Use COM Object to retrieve address data, but implement your own user interface

Full Address using the COM Object user interface

Step 1 Sign up for 30 day trial

Simply use the "Sign Up for Trial" link at top right of this page to open a trial account. We will then send you a data key, which is used to identify your account, when using the following service.

Step 2 Download/Install SimplyPostcode COM Object

The COM Object is for use with any COM compliant language. You have two choices to install the object on the target computer:

Option 1 Run our install routine

Simply run InstallSimplyPostcodeCOM.exe or InstallSimplyPostcodeCOM.msi from the root of our api example code as admin. This will install and enable the COM object without any user input.

64bit applications

If you wish to use from 64bit applications. You need to run Simply_COM_Obj_64Bits_register_fix.exe, as admin, which alters the registry to enable 64bit applications to use the 32bit COM object.

Option 2 Distribute files in your own install package

The Postcode Software COM Object is in the “COM Object\COM Object Files” directory of our api example code:

Microsoft Internet Transfer Control (MSINET.OCX)" OCX control *
Msvbvm60.dll to be in application directory
mscomctl.ocx to be in application directory
SimplyPostCodeLookup.dll *

* = Needs to be registered as a COM object by install routine.

Step 3 Creating the COM Object

Add a COM Reference to our COM object, “ISimplyPostCodeCOMClass”SimplyPostCodeLookup.dll, within your programming language.

      VB.NET

        Dim SimplyPostCodeLookup As New SimplyPostCode

Step 4 Specify the Data Key

The Data Key will have been sent to you via an e-mail when you opened the account. It is also available under the “Data Key” tab of the online admin window. For the .NET Assembly you should use the data key beginning with "I_".

        VB.NET

          SimplyPostCodeLookup.SetDataKey(“I_KD352jKKHhk2GAFFKDU”)

Step 5 Call SearchForFullAddressWithDialogue to display search window

Simply call SearchForFullAddressWithDialogue(PostcodePrima, Caption, ShowLicienceDetails, AllowManageAccount, DisplayErrors)

This call can be used with Local Data or Internet based data. But when using Local Data the advanced search is not available.

This function call will display a dialogue box for the user to enter the postcode to search for (or particial address words if using our Web Based data). The user then presses the [FIND] button, and a list of possible addresses is displayed for the entered postcode. The user selects an appropriate address record and the address is returned.

Parameters

Parameter name	Description
PostcodePrima As String	allows you to initiate the search when opened
Caption As String	allows the dialogue to show License status. It is good practice to show this information
ShowLicienceDetails As Boolean	allows the use to go to their on line account to purchase more licenses
AllowManageAccount As Boolean	allows program to show errors. If off then will simply close and return errors in General_credits_display_text and General_errormessage

Returns

Returns true if address search completed and General_credits_display_text contains summary of Credits/License status.

Postcode Lookup Example

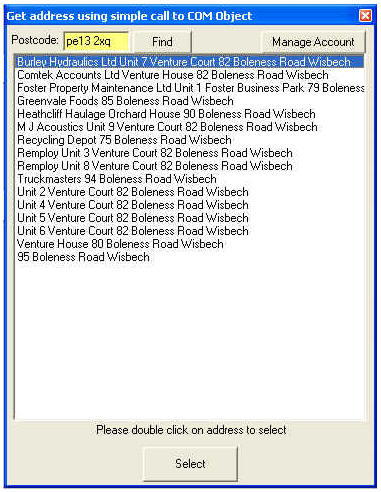

This code displays the following Postcode Address Lookup window:

      VB 6

        Function GetAddressByPostcode() As Boolean



             On Error GoTo Error_loading

             Set SimplyPostCodeLookup = CreateObject("ISimplyPostCodeCOMClass.SimplyPostCode")



             SimplyPostCodeLookup.SetDataKey ("Your Data key")



             If SimplyPostCodeLookup.SearchForFullAddressWithDialogue("", "Get Address", true, true, true) then

                With SimplyPostCodeLookup

                   me.CompanyName = .Address_Organisation

                   me.Line1 = .Address_Line1

                   me.Line2 = .Address_Line2

                   me.Line3 = .Address_Line3

                   me.Town = .Address_Town

                   me.County = .Address_County

                   me.Postcode = .Address_Postcode



                end with

             end if

             Set SimplyPostCodeLookup = Nothing



          Exit_error:



             Exit Function



          Error_loading:



             MsgBox "Simply Post Lookup COM Object has not been installed on this PC !!! Please install using

                         'InstallSimplyPostcodeCOM.EXE'", vbCritical, "Simply Postcode Lookup software"

             Resume Exit_error

          End Function

      VB.NET

        'Set Data key, to identify your account

        SimplyPostCodeLookup.SetDataKey(Me.txtDataKey.Text)



        With SimplyPostCodeLookup

           If .SearchForFullAddressWithDialogue(Me.txtPostcode.Text, "Get address using simple call to

                         .NET Assembly Object", True, True, True) Then



              Me.CompanyName.text = .Address_Organisation

              Me.Line1.text = .Address_Line1

              Me.Line2.text = .Address_Line2

              Me.Line3.text = .Address_Line3

              Me.Town.text = .Address_Town

              Me.County.text = .Address_County

              Me.Postcode.text = .Address_Postcode



           End If

        End With

Using .NET Assembly to provide Address Finder

Advanced Search Example

This function adds an Advanced Find button to the search window provided by SearchForFullAddressWithDialogue call (See previous section). This allows users to enter address words to search for, to return Full address information:

Advanced search using .NET Assembly

When the Advanced Find button is pressed the following is displayed:

Advanced postcode search results

Results

Results of Advanced Postcode Search

This advanced word search call can ONLY be used with Internet based data

Step 6 Testing

Final step is to test, to enable easy testing please use our special test postcodes.

See section below for detail on data returned

Postcode Lookup Software Full Address - Example Code

Simply download the example code. The code is in the "COM Object/C++ COM Object","COM Object/MS Access 2000 onwards","COM Object/MS Excel using COM", "COM Object/VB6 COM Example","COM Object/VBNET COM 2005" directory of our example downloads.

You must run InstallSimplyPostcodeCOM.EXE included in the above download.

These examples demonstrate postcode lookup software using Full Address.

Full Address using the COM Object and implement your own User Interface:

Firstly follow steps 1,2,3 and 4 above. Indeed the section above shows the princile behind this searching method.

Step 5 Present a list fo addreses from postcode entered

Simply call GetFullAddressToList(Postcode), with the Postcode the user has entered in search box.

This call can be used with Local Data or Internet based data.

Parameters

Parameter name	Description
Postcode as string	Postcode to find. If using our Internet based data, then the user can enter words, and wildcard, to search for address data.

Returns

Returns true if address search completed and General_credits_display_text contains summary of Credits/License status. Else errors reported in General_errormessage.

Step 6 Call for each line to display

And then call GetFullAddressLineForSelection() to get each line for list selection for display, discussed in next section.

Example Search Code

      VB.NET

        'Set Data key, to identify your account

        SimplyPostCodeLookup.SetDataKey(Me.txtDataKey.Text)
         Me.ListBox1.Items.Clear()
         With SimplyPostCodeLookup
           If .GetFullAddressToList(Me.txtPostcode.Text) Then



             'Make list + Cancel button visible

             Me.ListBox1.Visible = True

             Me.ButCancelSelection.Visible = True
            'Now Populate the List box

             Dim Line$

             Line = .GetFullAddressLineForSelection()

             Do Until Line = ""

               Me.ListBox1.Items.Add(Line)

               Line = .GetFullAddressLineForSelection()

           Loop
           Else

              MsgBox(.General_credits_display_text & vbCrLf & .General_errormessage,

                                   vbCritical, "Simply Postcode Lookup")

          End If
           Me.Text = "Simply Postcode Lookup : " & .General_credits_display_text
        end With

      C# .NET

        string DataKey;

        DataKey = "Your Data Key"

        SimplyPostCodeLookup.SetDataKey(ref DataKey);
         ListBox1.Items.Clear();
         string PostCodeToFind = txtPostcode.Text;

          if (SimplyPostCodeLookup.GetFullAddressToList(ref PostCodeToFind) == true)

          {

            //Make list + Cancel button visible

            ListBox1.Visible = true;

            ButCancelSelection.Visible = true;
            //Now Populate the List box

              string Line="";

            Line = SimplyPostCodeLookup.GetFullAddressLineForSelection();

            while (Line != "")

            {

                ListBox1.Items.Add(Line);

                Line = SimplyPostCodeLookup.GetFullAddressLineForSelection();

            }
          } else {

             MessageBox.Show(SimplyPostCodeLookup.General_credits_display_text + " " +

            SimplyPostCodeLookup.General_errormessage, "Simply Postcode Lookup");

          }
         this.Text = "Simply Postcode Lookup : " +

          SimplyPostCodeLookup.General_credits_display_text;

Step 7 Get Address Record Selected

Now get Address record, when user double clicks on address line in selection box

Calling GetFullAddressRecord(SelectedListIndex as long)

Parameters

Parameter name	Description
SelectedListIndex as long	The index number of the item selected in the listbox. Zero being the first item on the list

Returns

Returns true if address search completed and General_credits_display_text contains summary of Credits/License status. Else errors reported in General_errormessage.

Example get address record

      VB.NET

        With SimplyPostCodeLookup

           If .GetFullAddressRecord(Me.ListBox1.SelectedIndex) Then
                      Me.CompanyName.text = .Address_Organisation

              Me.Line1.text = .Address_Line1

              Me.Line2.text = .Address_Line2

              Me.Line3.text = .Address_Line3

              Me.Town.text = .Address_Town

              Me.County.text = .Address_County

              Me.Postcode.text = .Address_Postcode
                    Else

                        MsgBox(.General_credits_display_text & vbCrLf & .General_errormessage,

                          vbCritical, "Simply Postcode Lookup")

           End If
                     Me.Text = "Simply Postcode Lookup : " & .General_credits_display_text

              End With

      C# .NET

        int  SelectedIndex=ListBox1.SelectedIndex;

        if (SimplyPostCodeLookup.GetFullAddressRecord(ref  SelectedIndex)==true)

        {

          CompanyName.text = SimplyPostCodeLookup.Address_Organisation;

           Line1.text = SimplyPostCodeLookup.Address_Line1;

           Line2.text = SimplyPostCodeLookup.Address_Line2;

           Line3.text = SimplyPostCodeLookup.Address_Line3;

           Town.text = SimplyPostCodeLookup.Address_Town;

           County.text = SimplyPostCodeLookup.Address_County;

           Postcode.text = SimplyPostCodeLookup.Address_Postcode;
        } else {

             MessageBox.Show(SimplyPostCodeLookup.General_credits_display_text +  " " +

                      SimplyPostCodeLookup.General_errormessage,  "Simply Postcode Lookup");

        }




        this.Text = "Simply Postcode Lookup : " +

                                     SimplyPostCodeLookup.General_credits_display_text;

Step 8 Testing

Final step is to test, to enable easy testing please use our special test postcodes.

Postcode Software Full Address - Example Code

You must run InstallSimplyPostcodeCOM.EXE included in the above download.

These examples demonstrate postcode lookup software using Full Address your own User Interface.

Data Returned:

This type of license returns: (see example below)

ID
CompanyName
Line1
Line2
Line3
Town
CountyState
PostZipCode
Country "England","Wales","Northern Ireland","Isle of Man","Channel Islands","Scotland"
MailSort ●
Unique ●
DeliveryPointSuffix ●
NoHouseHolds ●
UDPRN ● (Royal mail unique id for each address)
Spare ●

●see Additional Data Returned by Postcode Finder API for more information

The following return the status of the account and search:

    VB.NET

      Public General_confirm As Boolean

          'True if address data returned

      Public General_credits_display_text As String

          'Shows number of Credits/Users  available

      Public General_accountadminpage As String

          'Gives URL of online account  admin page

          'From here the customer can be  more Credits/Licenses

      Public General_errormessage As String

          'Error Message if error

      Public General_credits_display_showbutton As  Boolean

          'True if should show button to  buy more Credits/Licenses OPTIONAL
